Tri-Star- 104′ Sailing Trimaran
-

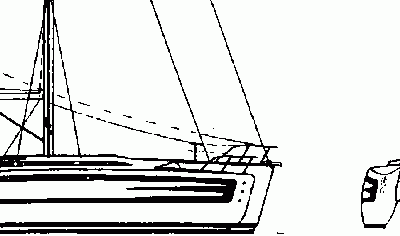

Profile and Forward View
-

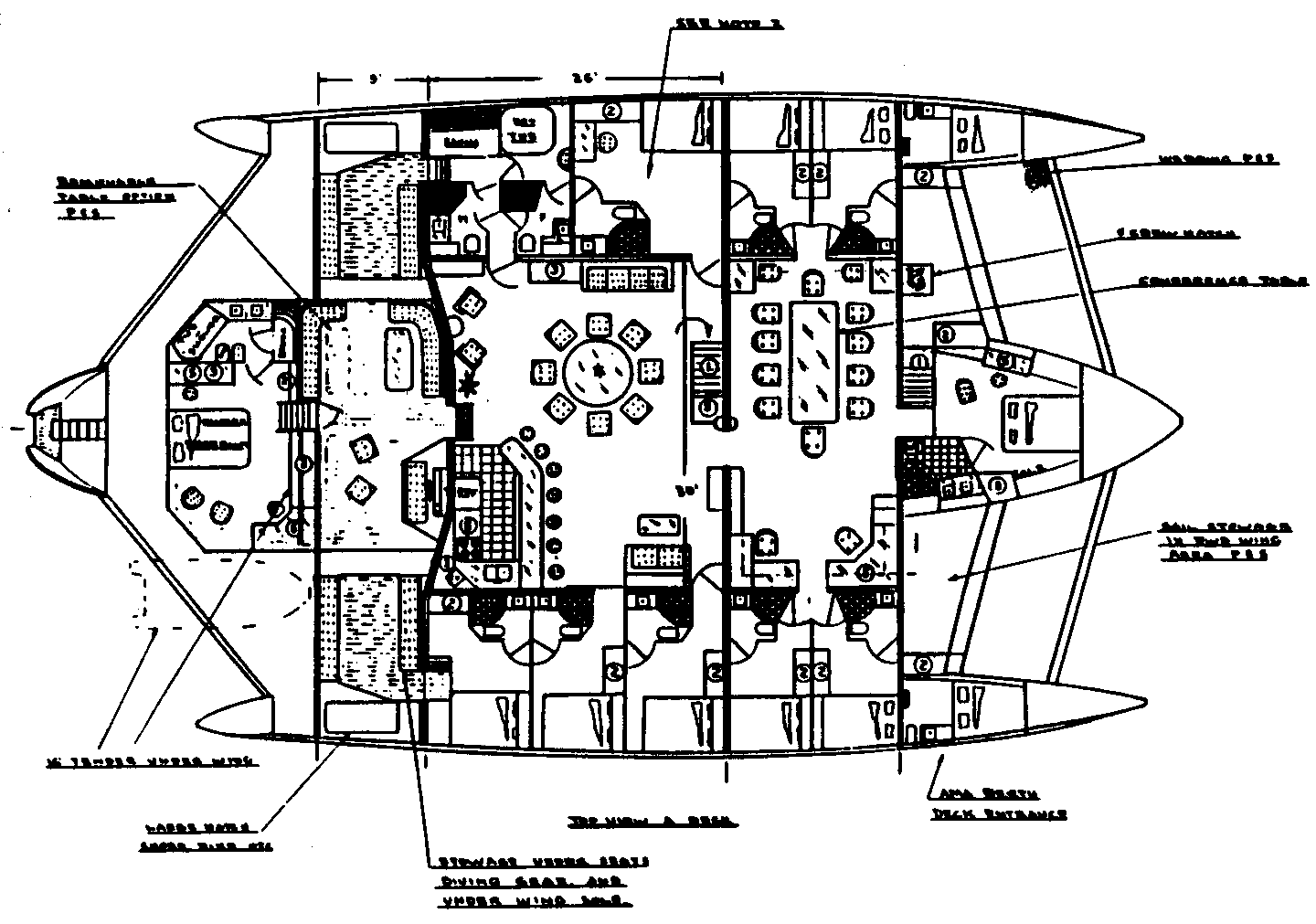

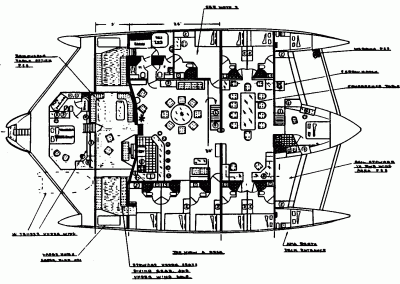

General Arrangement
TRI-STAR 104 is a yacht with over 7000 sq. ft. of floor space. She is designed to fit an owners specification. TRI-STAR 104 interior accommodations were designed for the owner to hold company board meetings around the world, with deluxe accommodation for the board members and family. TRI-STAR 104 was designed with constant radius hull lines the same seen on the TRI-STAR 80, giving her a large spacious interior for owner or chartering, plus great sailing performance. Nine+ staterooms, plus crew quarters with luxurious salon and galley area.
| Tri-Star – 104′ Sailing Trimaran | ||
| Length Overall | 104′ | 31.74m |
| Beam Overall | 60′ | 18.3m |
| Displacement | 165,000 lbs. | 75,000 kg |
| Draft | 6’3″ | 1.95m |
| Working Sail Area | 4309 sq ft | 406.51 sq m |
Layouts
You can customize your new Catamaran with the layout you design. If you would like to move the kitchen, or make the living room larger, it can be done. The design would need to fit within the parameters of the hull and structural bulkheads.
Designed by Tri-Star Designs
For more information, email us at Info@PedigreeCats.com
