Malcolm Tennant- 70′ Power Catamaran
-

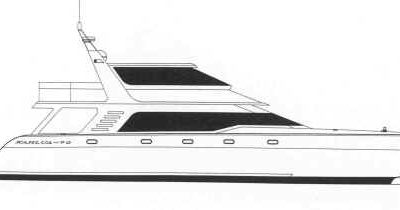

Profile
-

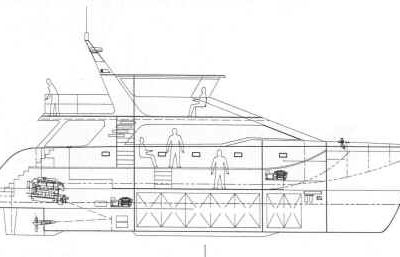

General Arrangement
| Malcolm Tennant- 49.8′ Power Catamaran | ||
| Length Overall | 70′ | 21.3m |
| Beam Overall | 38.2′ | 10m |
| Draft | 4.1′ | 1.25m |
| Wingdeck Clearance | 5.25′ | 1.8m |
| Light Ship Displacement | 69,907 lbs | 31,776 kg |
| Full Load Displacement | 103,572 lbs | 47,068 kg |
| Power | 2x 660 hp | 2x 492 kW |
| Speed | 28 Kts | |
Layouts
You can customize your new Catamaran with the layout you design. If you would like to move the kitchen, or make the living room larger, it can be done. The design would need to fit within the parameters of the hull and structural bulkheads.
Designed by Malcolm Tennant
For more information, email us at Info@PedigreeCats.com
