This cat could be laid out just about the same as some of the
big cats.
This cat can also be built with flared hulls for added room in the
hulls.
Power in a cat this size is usually twin Diesels about 59 hp with sail
drives and 3 bladed, full feathering props.
|
|
||
|
|
|
|
|
|
|
|
| Draft |
|
|
Although a possibility is shown below, you can customize your new Catamaran with the layout you design. If you would like to move the kitchen, or make the living room larger, it can be done. The design would only need to fit within the parameters of the hull and structural bulkheads.
.
This possible floor plan features 4 staterooms and 2 smaller berths forward. The large sloping windows shown in the profile slope inward toward the salon to let light fall into the entire hull/salon area..
The port aft stateroom is similar to 1 but has an entry from cockpit also, which may be left open or treated with etched/frosted entry for lightness. Forward there is a galley with entry from either side with a deep freeze, refrig., and other appointments. A raised bar partially separates the galley and the salon. Further forward there is the master stateroom, across the full width of hull (30'), with its own head, wardrobes, dressing areas and work/office space. This room is designed to be as open as possible, with plants, lots of light, and movable furniture, even a daybed under the window. Forward is a smaller berth with more wardrobe/storage space.
The starboard hull includes an aft stateroom with head, slightly forward smaller stateroom, shared full head, master stateroom, and another forward berth.
The docking area on each transom (both layouts) makes it
possible to
launch kayaks and other vessels with ease, while providing possible
storage

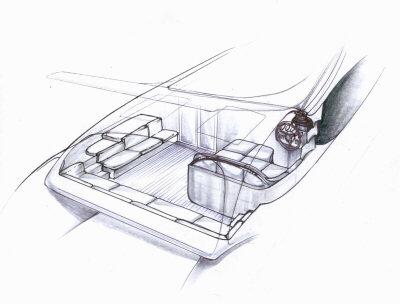

areas for these toys and maybe a PWC or two. The cockpit has a
central
seating area, then raised lounge decks on either side.
